Sistem CTP ComputerToPlate Termic

comanda acum descarca pdf

Sistem ComputerToPlate Termic - CTP Thermal

Item

Model

Specifications

Remark

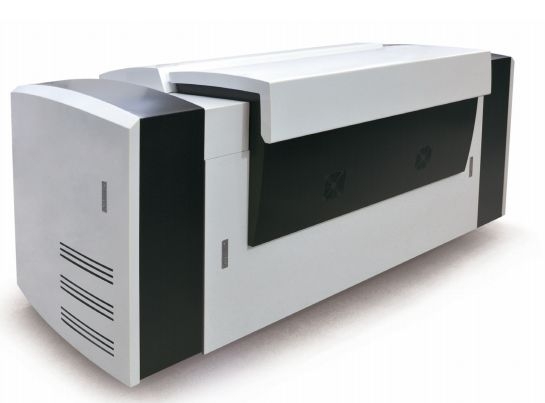

Thermal Plate Setter

DX1160

Drum: External
Write lasers : 64 infrared lasers
Plate size:
Maximum 1160 mm *940 mm
Minimum 510 mm *400 mm
Plate type: Thermal(830nm sensitive) plate
Plate thickness: 0.15-0.4mm
Resolution: 2540DPI / 2400DPI
Max linescreen: 300lpi
FM dot resolution:20um
Repeatability :±0.01mm
Throughput(For plate size1030*800 including loading time):>25p/h (2540dpi)

64 Laser Channels 1.Recommended environment:
temperature 23
±2/
humidity 40%-70%
2.Power supply:220VAC 10KW
3.Measurement:(L*W*H):
1380mm*2600mm*1150mm
4.N.W.:1600KG









Processor

HQ-PT90

Plate size:Maximum plate width 940mm
Plate size:Minimum plate length 400mm
Processing speed:15-45s
Processing temperature deviation: ±0.05

Operation mode:Touch screen provide
Specially designed heating and cooling system constitute the chemical temperature control system.
Automated chemical fill
Automatic chemical and anti-oxidation replenishment system

Automatic Bridge(Optional)
Automatic Stacker(Optional)

HQ-PT130

Plate size:Maximum plate width 1300mm
Plate size:Minimum plate length 400mm
Processing speed:15-45s
Processing temperature deviation: ±0.05

Operation mode:Touch screen provide
Specially designed heating and cooling system constitute the chemical temperature control system.
Automated chemical fill
Automatic chemical and anti-oxidation replenishment system

Automatic Bridge (Optional)
Automatic Stacker (Optional)

Digital Workflow
System





1.Prepress processing software\HQRIP\Founder RIP
2.One bit TIFF (On-line CTP)
